Grundfos Plate and Frame

Manufactured By: GRUNDFOS Pumps and Accessories

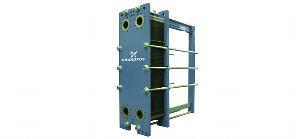

Gasketed Plate Heat Exchanger (HEP) Versatile and reliable gasketed plate heat exchangers feature wavelike corrugation for optimal fluid distribution, leading to the highest heat transfer rates at the lowest pressure drops. They also feature a glue-free gasket for simple replacement and a self-centering plate system for longer lifecycle.

Applications

  • District Cooling
  • Cooling Tower
  • Free Cooling
  • Ice Storage
  • Pressure Interceptors
  • Pool Heating



Standard Features and Benefits

  • Grundfos offers the latest plate heat exchanger design in the HVAC market.
  • Plate heat exchangers and accessories are made in the USA, providing compliance with the Buy America Act and the Pennsylvania Act.
  • Gasketed plate heat exchangers feature clip-on gaskets, meaning no gluing is required.
  • Plate style reduces fouling and saves space without sacrificing performance.
  • Interlocking tabs and non-welded hangers ensure self-alignment and maximize gasket surface area to prevent atmospheric leaks and provide ease of maintenance.
  • Selected plates are available in 400 PSI design pressure, making it suitable high pressure applications.


Certifications

AHRI
ASME
Buy America Act
ARRA
Pennsylvania Steel Act
CRN



Grundfos MF Family
Multi-Function Plate and Frame Heat Exchangers

The Grundfos HEP-MF gasketed plate and frame heat exchanger family is our most versatile unit, featuring connection sizes from 1 to 14 inches. Our compact design is available in a wide variety of materials, plate configurations and sizes. A maximum flow rate of up to 9,600 gpm and a pressure rating of up to 300 psi makes this efficient heat exchange the best option for your heat transfer needs.



Grundfos MFT
Multi-Function High Theta

The Grundfos HEP-MFT gasketed plate and frame heat exchanger is the perfect fit for district cooling, thermal storage and pressure breakers. The system efficiency from this single-pass heat exchanger allows you to approach temperatures less than 2 degree F. The MFTs flexible, single-pass design eliminates the need for additional piping and auxiliary equipment used in multi-pass designs, making it an economical choice for your system.
