Tigerflow Testing Facility

Manufactured By: Tigerflow

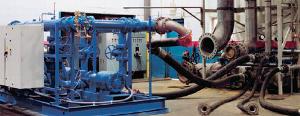

Tigerflow full performance testing facility.

  • Independently calibrated and traceable
    to NIST standards
  • 10,000+ GPM flow rate
  • 8000 gallon NSF-61 coated test tank
  • Test loops, Schedule 40 hot dipped
    galvanized steel (20", 12", 16", 3")
  • (4) Flowsensors +/- 1% accuracy
  • (5) Pressure transducers +/- 1% accuracy
  • (2) Temperature sensors w/RTD"S
  • Testing up to 1000 total connected HP
  • Three phase voltages: (460/230/208, 3Ø)
  • Single phase voltages: (240/208/120/1 Ø)
  • Tiger Eye solid state microprocessor
    based master test & control panel
  • Flow in GPM (4) separate digital flowmeters
  • Pressure in PSI & Feet TDH
  • KW, amperage, voltage
  • Wire to water efficiency
    indication/testing
  • HVAC test control
  • X-Y System performance testing/test
    reports
  • Factory trained system technician
  • Research & development facility

TOTAL THIRD PARTY SYSTEM CERTIFICATION complying with OSHA & Federal Regulations 29CFR1910.303, 29CFR1910.399, NFPA Pamphlet #70 (National Electric Code) article 90-7

  • UL/ C-UL listed packaged pumping
    system label "QCZJ"
  • ETL/ C-ETL listed packaged fire pump
    systems
  • City of Los Angeles Approval Code #m-
    980006
  • City of Chicago Standards
  • CMR 248 Massachusetts Plumbing
    Code Approval #p3-0204-58
  • State of Ohio Industrialized Buildings
    Authorization #308.02
  • State of Washington, Dept. of Labor &
    Industries Approval
  • UL/C-UL 508/918 industrial control panel
    facility
  • All ASME code section 9 welders
  • OSHA compliant safety program
  • In depth quality assurance program
  • NIST traceable & calibrated test facility
  • Certificate of product liability insurance
  • Single source system warranty
