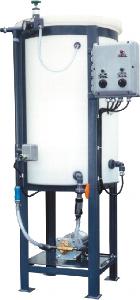

JL Wingert Automatic Glycol System

Manufactured By: Sulzer ABS Pump Systems

Industrial grade 1/4" thick polyethylene tank Integral one piece carbon steel stand Pump capacity output 1.3 GPM at 100 psi (2.2 GPM at 0 psi) 1/3 hinged polyethylene cover 3-30 psi, 10-50 psi and 40-100 psi available pressure ranges NEMA 4X control panel 10 amp relay 8 ft. power cord 1/2 HP gear pump optional (3 GPM at 100 psi) Audible alarm and silence switch available Optional remote dry contact on low level for PLC interface or control room alarm

Digital Economy Glycol System
    Model GL50-E1-D
  • (1) 1/3 HP pump (1.7 GPM @ 50PSI)
  • Lockable NEMA 4X control panel with clear cover
  • Digital controller with display
  • 55 gallon polyethylene tank with carbon steel stand
  • Low level float switch with low level pump cut out
  • (1) Analog 0-150 PSI pressure transducer and 0-160 PSI gauge
  • (1) Adjustable brass pressure relief valves
  • (1) Brass check valve
Economy System
    Model GL50-E
  • 1/3 HP gear pump
  • NEMA 4X control panel
  • 50 gallon polyethylene tank with carbon steel stand
Dual Economy System
    Model GL50-2E
  • (2) 1/3 HP gear pumps
  • NEMA 4X control panel
  • 50 gallon polyethylene tank with carbon steel stand
  • Low level float switch
  • (2) Pressure switches and gauges
  • (2) PVC pressure relief valves
High Temperature System
    Model GL50-H
  • 1/3 HP gear pump
  • NEMA 4X control panel
  • 50 gallon carbon steel tank and stand
  • Coated with corrosion resistant epoxy paint
  • Low level float switch
  • Pressure switch and gauge
  • Brass pressure relief valve
